VCS Rear Sight with ACRO Mount for Mossberg Factory Holes (Except 590R/590RM)
$325.00
Add a click-adjustable, wing-protected ghost ring rear sight with an integral co-witness Aimpoint ACRO red dot mount to your factory-drilled and tapped shotgun receiver.
The Vang Comp Rear Sight with ACRO Mount, using the factory-supplied holes.
- The most durable and versatile combo rear sight/optic mount for factory Mossberg hole patterns.

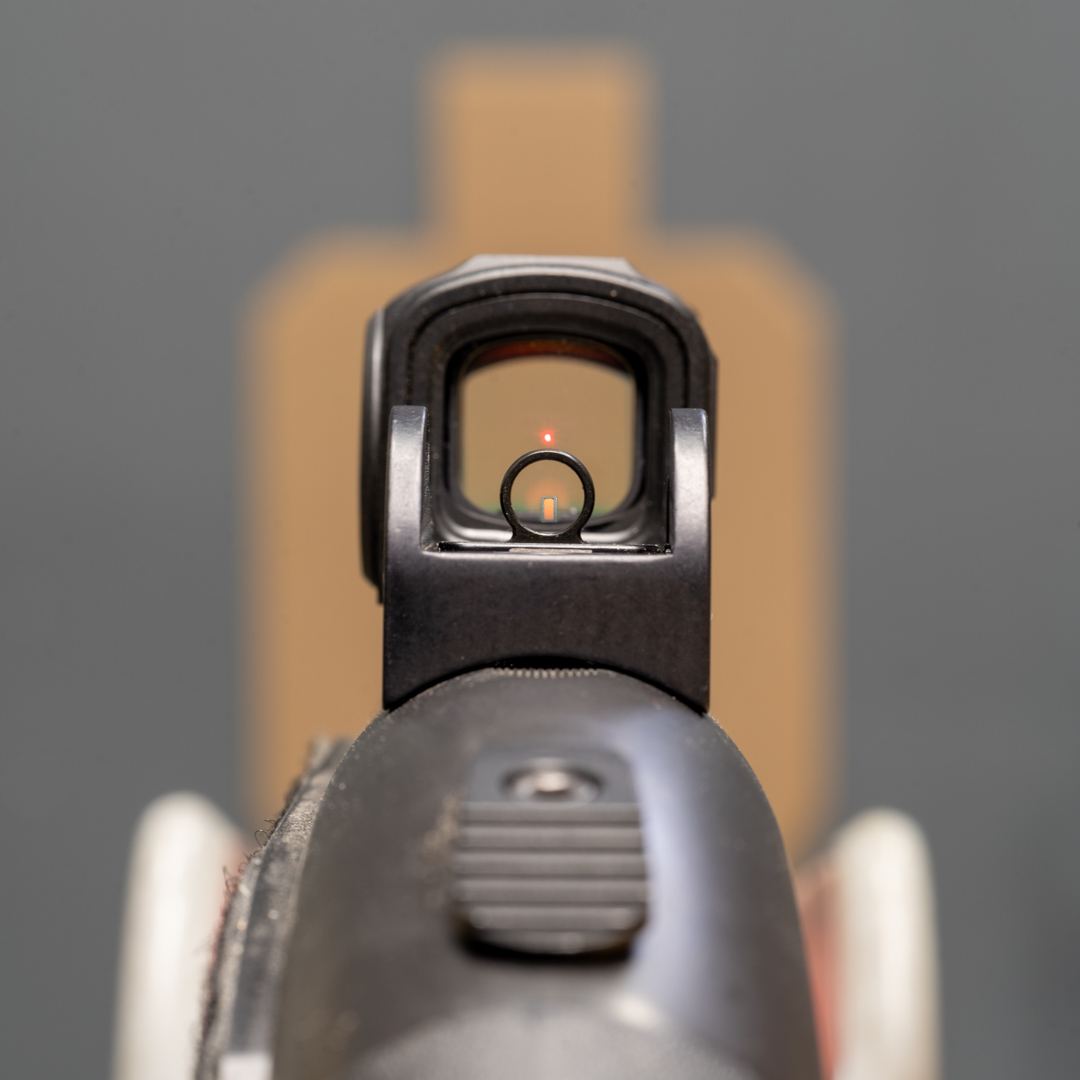

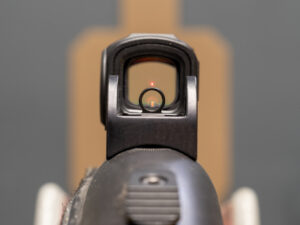

- Allows co-witness with factory-installed Ghost Ring Front Sights (Vang Comp, Mossberg Orange Stripe, XS Sights White Stripe, MMC, but NOT the extra tall LPA sight found on some models of the SPX Mossberg). 1/2″ to 3/4″ front sight height-over-bore is ideal for a functioning co-witness.
- Compatible with any optic that is designed to mount to the Aimpoint ACRO footprint.
- Made in the USA
- Billet 6061-T6 aluminum
- MIL-A-8625 anodize
- Receiver Mount Screws Included (#8-40 TPI)
- Weight: 1.7 oz.
NOTE: The fasteners provided are intended for use on a pump-action shotgun. Installing this optic mount with the supplied receiver mount screws onto a semi-auto shotgun may cause damage to the barrel. Recommend professional gunsmith installation.
Obviously, no optic is included in this purchase, just the Rear Sight/ACRO combo Mount.
**Be aware that this is made for Mossberg factory holes, NOT the Vang Comp hole pattern for our Rear Sight with Rail (VC-103). We’re working on a drop-in solution for folks with our VC-103 currently, but this VC-165 is not it.
Only 1 left in stock
Vang Comp Systems has been installing red dot optics on shotguns for over 20 years. We have seen the trends of “co-witness” and “Quick Detach” cycle in and out of fashion. Both have their merits. Red dot optics have come a long way in the last 20 years and now they are widely considered to be as durable, if not more so, than iron sights. Red dot sights are no longer the future; they are the now.

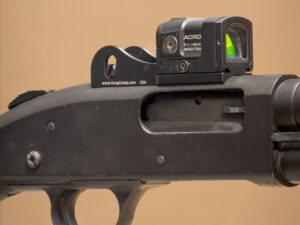

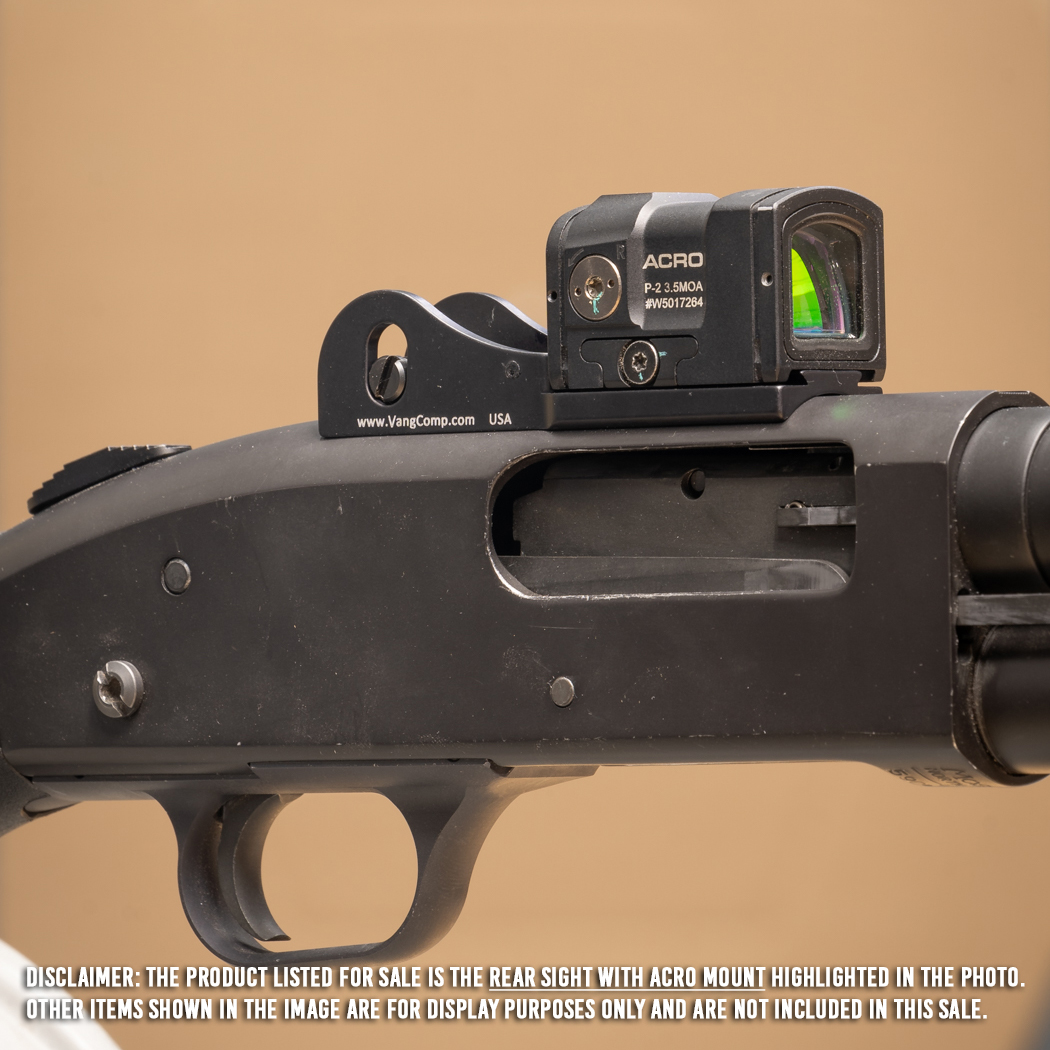

This new combination rear sight with direct optic mount attaches to the shotgun using the drilled and tapped holes provided by the factory. It eliminates the height of both the Picatinny rail on the receiver and the optic’s Picatinny mount. The lower overall mounting height keeps the optic closer to the barrel (height-over-bore), providing for a lower-profile install and a more natural cheek weld when sighting.
Most of the people who have sighted shotguns with this optic mount installed do not require cheek risers to achieve a natural point of aim. The proven Wing Protected rear sight design has been a staple on Vang Comp builds ever since we grew tired of waiting on a certain Italian sight manufacturer to import sights at the pace we needed. So we made our improvements and changes and had them made in the USA.
The click-adjustable rear sight offers gradual, repeatable 1/4 MOA per click adjustments for both windage and elevation.
========================
nstalling VCS Rear Sight with ACRO Mount:
- Safety First: Ensure your firearm is unloaded and safe. Remove all live ammunition from your workspace.
- Prepare the Receiver: Clean and degrease the threaded holes on top of your receiver where the sight will be installed.
- Attach Mount to Receiver: Using the supplied #8-40 mount screws from the BLUE bag, tighten them with a T10 TORX driver to 15 in/lbs (that’s INCH, not foot). Ensure the screws are tightened properly. For added security, consider using Blue Loctite #243 (not included) on these (2) mount screws.
- Install Optic on Mount: Install your Aimpoint ACRO (or compatible footprint) optic onto the mount using the optic manufacturer’s recommended torque specifications.
- Enjoy Responsibly!
Congratulations! You have now successfully installed the finest Rear Sight with ACRO mount onto your shotgun.
| Weight | .07 kg |
|---|---|
| Dimensions | 14 × 7 × 3 cm |
